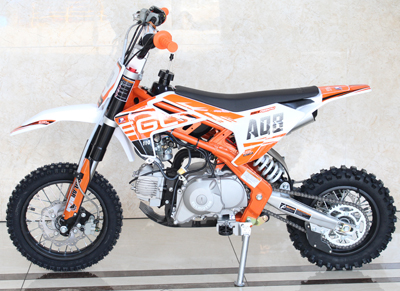

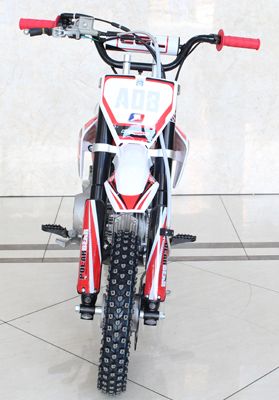

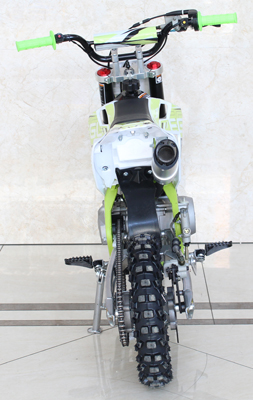

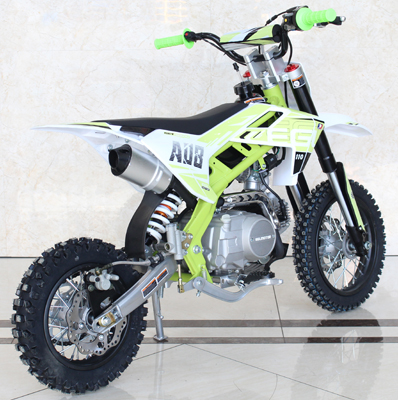

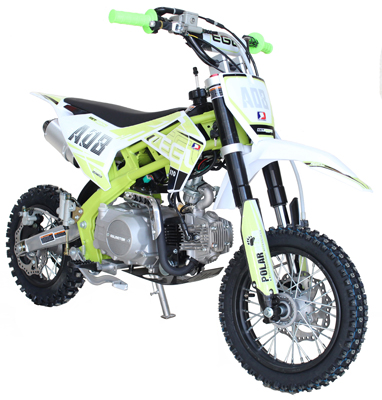

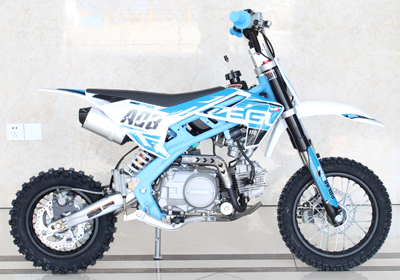

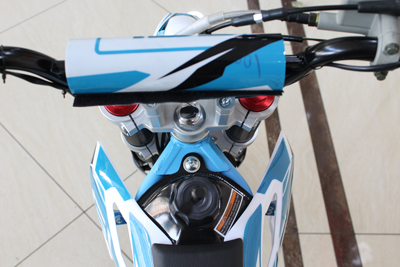

EGL A08 (110cc)

Specifications:

A-08 (110cc, Automatic, 12″x10″)



Transmission: Automatic

Starting System: Electric start

Engine Type: 110cc

Cooling System: Air Cooled

Compression Ratio: 9.7?1

Max Power[Kw/r/m]: 5.0(1±10%)/8000(1±5%)

Max Torque[N.m/r/m]: 6.9(1±10%)/6000(1±5%)

Front Suspension: Φ45*Φ48 L=630mm Inverted Hydraulic Non-Adjustable

Rear Suspension: L=280 Adjustable

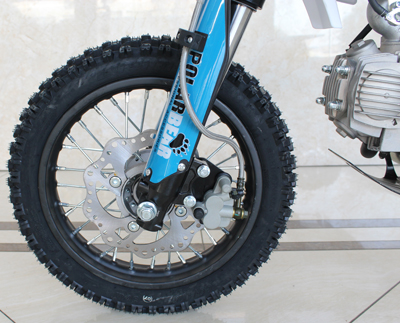

Front / Rear Brake: Disc

Front Tires: 60/100-12

Rear Tire: 80/100-10

Weight Capacity [kg]: 80

Net Weight[kg]: 65

Gross Weight[kg]: 75

Overall Length [mm]: 1440

Overall Width [mm]: 660

Overall Height [mm]: 910

Seat Height [mm]: 650

Wheelbase [mm]: 1020±3

Min Ground Clearance[mm]: 180

Fuel Capacity [L]: 3

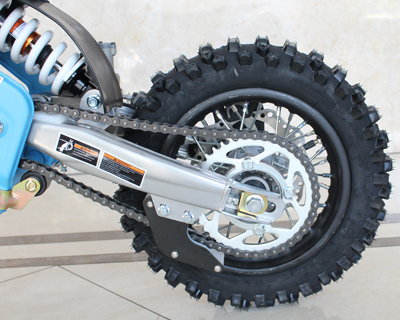

Final Drive: Chain

Ignition Type: CDI

Battery: 12V4AH

Colors: Red, Blue, Green, Orange
